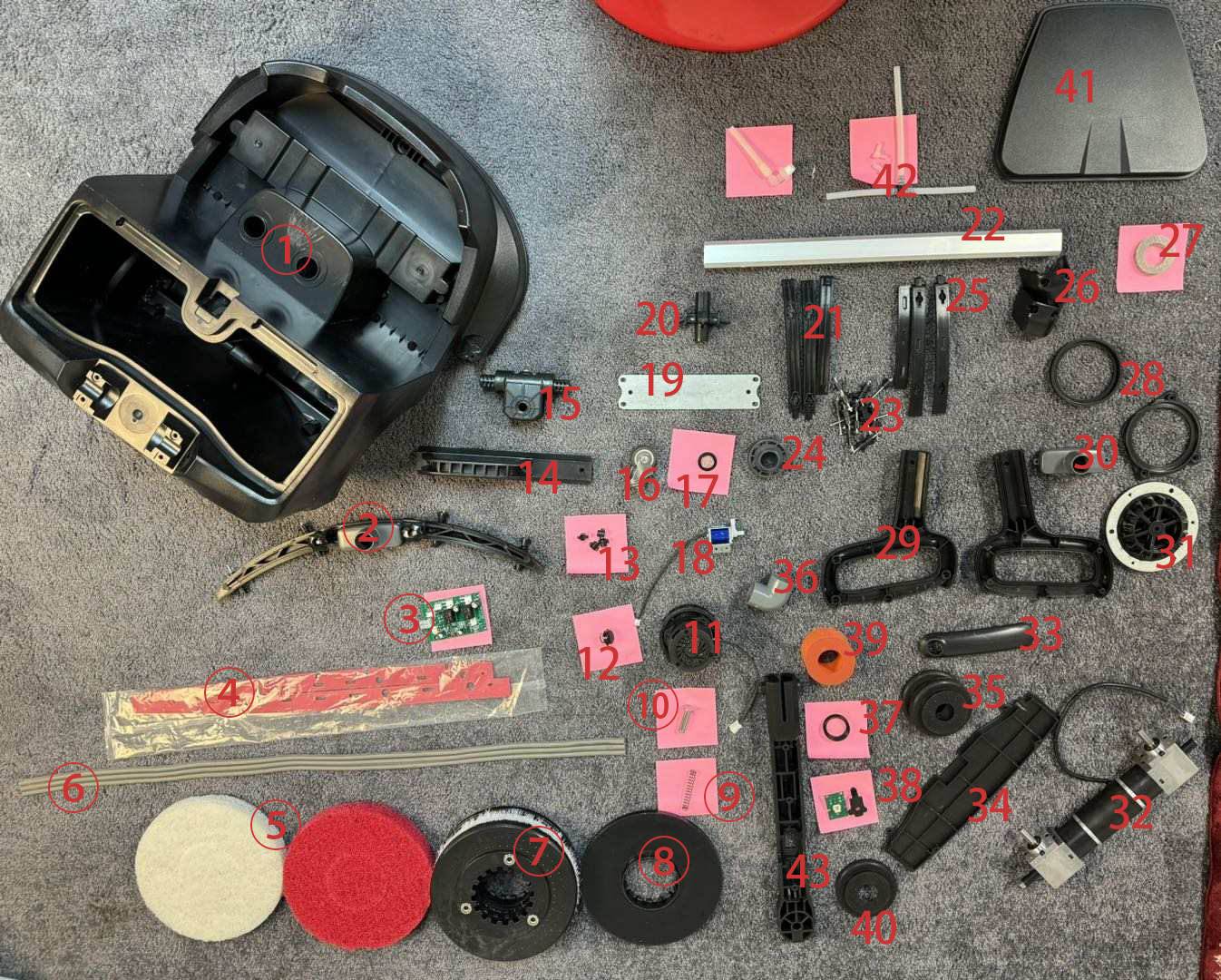

Doodle Bug Parts

1. Machine base
2. Head
3. Machine control panel
4. Rubber strip
5. Cleaning pad
6. Seal strip
7. Brush plate
8. Brush assembly
9. Locking buckle spring
10. Button spring
11. Suction fan
12. [Blank]
13. Climbing head fastening cap
14. Handle cover
15. Universal joint
16. Front caster
17. Filter
18. Solenoid
19. Motor fixing plate
20. Handle locker
21. Front middle clip / Front clip
22. Aluminum handle
23. Screws
24. Filter box
25. Front middle clip / Front clip
26. Universal joint cover
27. Filter
28. Fan damping rubber ring / Rubber retaining ring
29. Left half handle / Right half handle
30. Climbing head sealing cover
31. Flange + Flange iron ring
32. Brush motor
33. Grip handle
34. Motor fixing plate
35. Fan sealing rubber ring
36. Sewage elbow
37. [Blank]
38. Start switch
39. Float
40. Fan sealing rubber ring
41. Recovery tank cover
42. Outlet pipe
43. Universal rod

Cleanhorse K1 p – Doogle Bug parts
