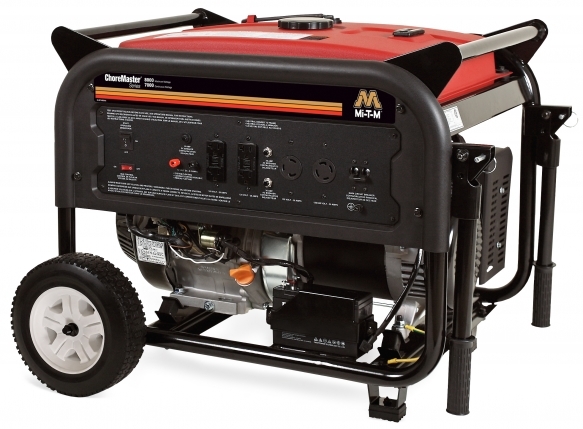

8000-watt generator is designed to provide 3 120 volt circuits and 1 12 volt circuit which makes is ideal to use with Electric Truckmounts. Perfect with 12 volt or 110 volt diesel heater. Note: In order to get the 3rd circuit, you will need to purchase an additional adapter.
Engine: Mi-T-M engine low-oil shutdown engine, Automatic idle control, Electric start (battery included)
Alternator: Brushed 120V/240V alternator,Copper and aluminum windings, Total harmonic distortion (THD) less than 6%
Frame: Low profile, compact design, Wraparound frame with 1-inch steel tubing, Wheel kit with tires and rubber gripped handles
Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles, Large low-tone mufflers, Engine on/off switch, Fuel shut-off valve, DC/battery charging
Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
Dimensions include the wheel kit with the handles in the down position.
Generator prices discounted when added to packages. 1599.00 If you remove the generator from package you won’t get credited for the full amount.
Specifications:
-
Receptacles
(2) 120V, 20A GFCI duplex, (1) 120V, 30A twist lock, (1) 120V/240V, 30A twist lock
-
Circuit Breakers
(1) Main circuit breaker, (2) 20A circuit breaker single pole, (1) 10A DC breaker
-
Displacement/ Engine
13 HP
-
Max. AC Output
8000 watts
-
Rated AC Output
7000 watts
-
Frequency/Voltage
60Hz/120V/240V
-
Max. Amps (120V/240V)
66.6/33.3
-
Cont. Amps (120V/240V)
58.3/29.2
-
Rated Speed
3600 RPM
-
Fuel Capacity
6.6 gallons
-
Run Time (at full load)
6.0 hours
Weights & Dimensions
-
Net Weight
195 lbs.
-
Shipping Weight
237 lbs.
-
Length
39 in.
-
Width
29 in.
-
Height
31 in.
