New! 2025 in production. 1st batch due out around Jan 15, 2025. 100% stainless coil inside -no rust from steel coils.
Only heat exchanger of this spec and quality with all stainless design on the market.
(Note: This package is not suggested for anyone who does not have previous experience or is not mechanically inclined. Please check with Taf before purchase – 877-926-3748 ext 104)
Leo Diesel Mini – All Surface Cleaner
Carpet, Tile, Grout, Hot Water Pressure Washing, and more.
Hot water reduces cleaning time & chemical cost by more than half. Compete better for greater profits
Do every surface – interior or exterior
Get any customer – residential or commercial
Truck-mounted or Portable

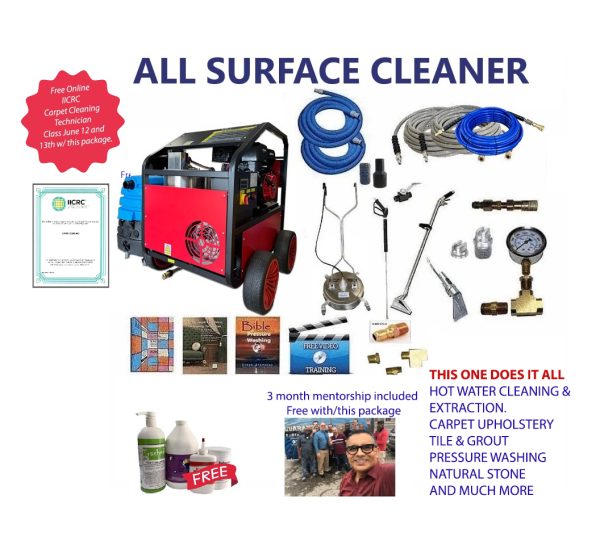

This package includes:
#1 Hot Water Pressure Washer for all outdoor surfaces and tile/grout. 15 HP gas powered motor, adjustable 275 to 4000 psi pressure pump & diesel heater. Auto Fill.
#2 Vacuum with pump-out for all indoor floor coverings – carpet, tile, stone, upholstery and more. Electric powered. 250 CFM. Built-in auto pump-out.
#3 100 ft of vacuum hose
#4 100 ft of 3/8th pressure hose and 50 ft of 1/4″ pressure hose – High heat
#5 Hose Joiner 2″ Barb x 2″ Barb
#6 High Pressure Ball Valve, Steel, 7350 PSI, 3/8” x 3/8” FPT
#7 Pressure washing wand
#8 Classic wand for carpet cleaning
#9 Carpet Cleaning to Pressure Washing Attachment
#10 Cuff 2″ threaded x 1.5″ slip
– Female 1/4″ Quick Disconnect
– Hard to Find Fitting #39 Hex Nipple Reducer 3/8″ male 1/4″ male
– 3/8″ Coupler with Male Pipe Thread
– 3/8″ FPT Quick Couple Plug, Nipple, Steel
#11 /8” FPT Quick Coupler, Brass
#12 Spin Master SS – Surface Cleaner Stainless Steel
#13 3/8″ FPT Quick Couple Plug, Nipple, Steel
#14 (2) Jets – Brass V-jet 1/4″, 95-03
#15 Upholstery cleaning tool
#16 Hard to find fittings for Pressure Gauge assembly (All surface cleaner set up)
– #9 Bushing 3/8″ male x 1/4″ female
– #30 Female Tee 3/8″ female x 3/8″ female x 3/8″ female
– #42 Hex Nipple 3/8″ male x 3/8″ male
#17 Carpet Cleaning Technician IICRC Manual and Videos.
#18 Upholstery Cleaning Technician IICRC Manual
#19 Pressure Washing Bible – Teaches you how to get pressure washing jobs
#20- brushing 3/8″ male x 1/4″ female
#21- Hex Nipple reducer 3/8″ male x 1/4″ male
#22- Street Tee 3/8″ female x3/8″ female x3/8″ male
#23- 3/8ths nipple/plug with male pipe threads
#24- 8 foot lead hose [1.5″]
#25- Hose Joiner 2″ barb to 1.5″ barb
#26- 1/4″ male quick connector, mate to 1/4″ QD Female
#27- 1/4″ female quick connector, Brass, mate to 1/4″ QD male
#28- Lightweight 1/4 Solution Line -50ft
#29- Mytee Air Hog Booster: 7303LX
#30 FREE Chemicals:
– Chemical Package (Citrapure Gel, Trashed Green Gel, Magic Spell, Defoamer sample)
– Oxy Wash Pressure Washing
Specification:

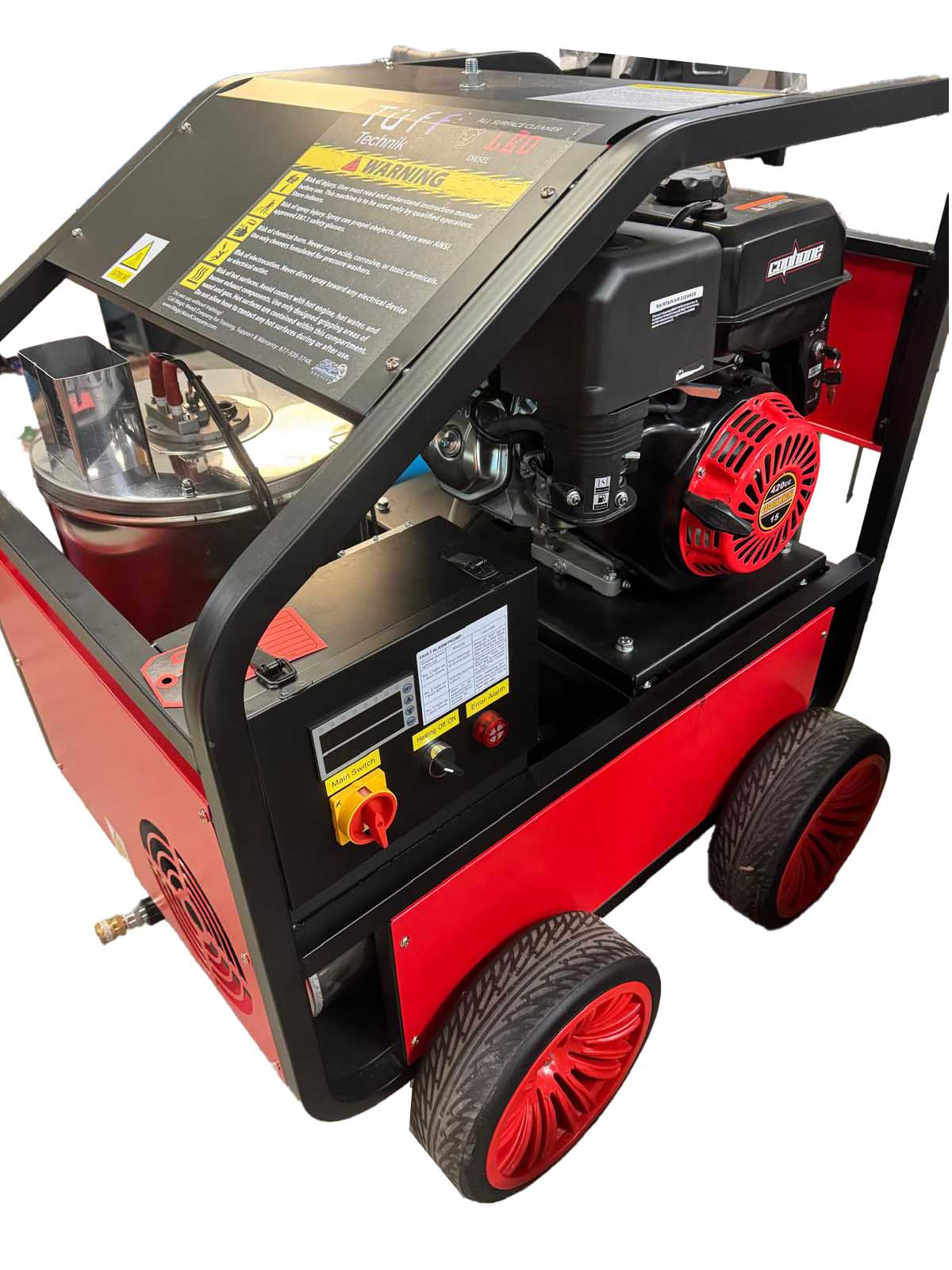

Engine: 15 HP

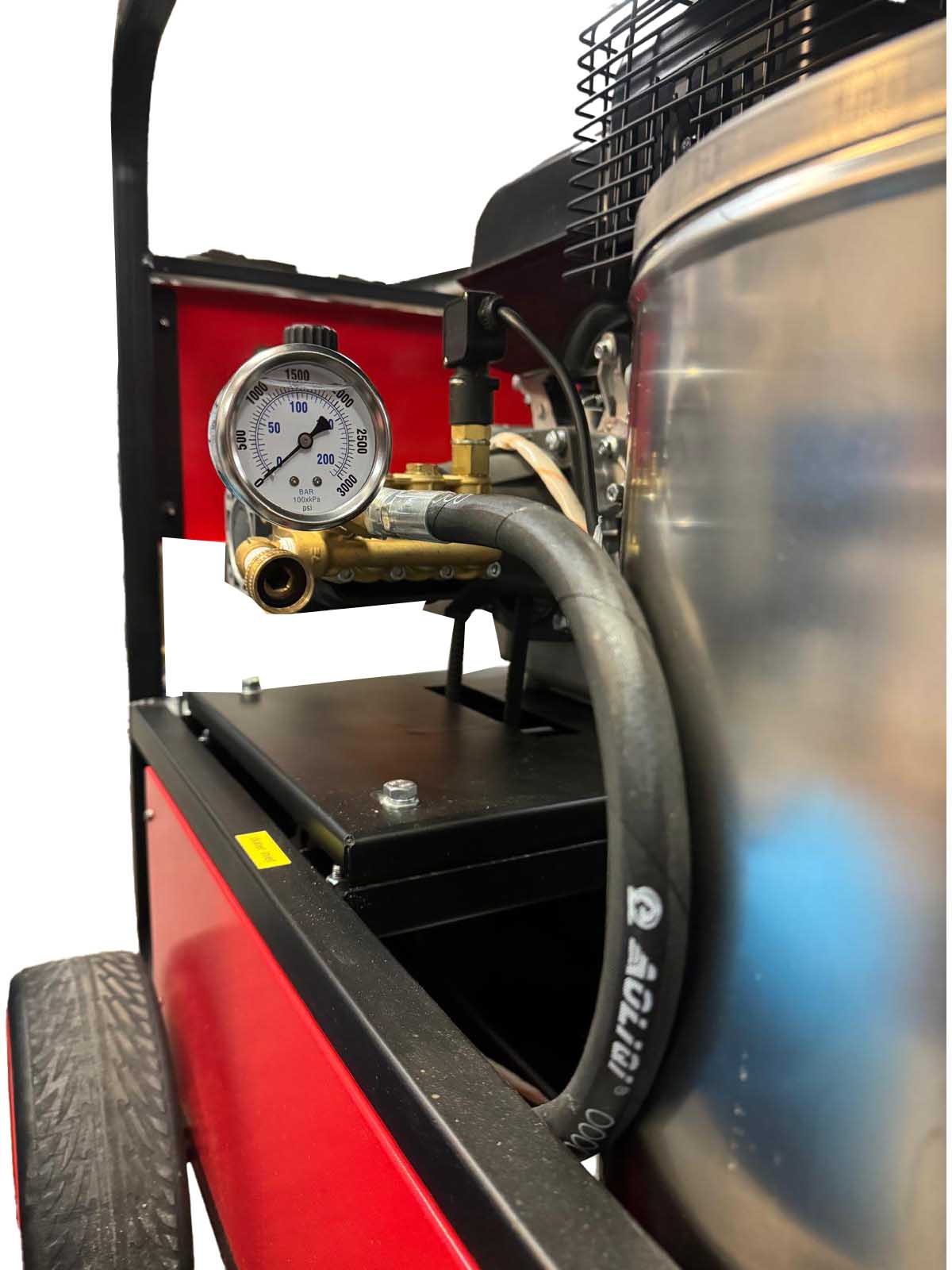

Pressure Pump: 4000 psi 4 gpm. AR pump – Italian
Machine dimensions: 50″ L x 36″ H x 36″ D (6 gal gas tank and diesel tank included in these dimensions)
Machine weight: 350 lb
Note: Battery is optional. You will need to purchase it locally as it can not be shipped.
See video of all the free educational, pricing, and support you receive with this package:
Quick Troubleshooting Guide
1. Key Components and Their Functions
- Red Circle (Pressure Switch YL): Monitors heating pressure.
- Blue Circle (Fuel Tank Level SL): Indicates the fuel level.
- Yellow Arrow (Water Outlet): Shows where water exits.
- Yellow Arrow (Water Inlet): Indicates where water enters the system.
- Ignition Transformer (T): Generates the spark for ignition.
- Fan Outlet: Located within the red circle.
- Gasoline Engine: Powers the system.
- DC12V-36AH Battery: Provides electrical power.
- Oil Pump and Oil Pump Coil (YV): Pumps and controls the flow of diesel.
- Fan Motor (M): Drives the fan.
- Fan: Provides air for combustion.
- LWB Change-over Switch (LWB): A switch used to turn on the electrical control box and initiate the fan.
- Heating Switch (SB): Activates the heating function.
- Fault Annunciator (HL): Indicates system errors.
- Viewing Screen: Displays information.
- Electric Control Box: Houses the electrical components.
- Gasoline Engine Starting Lock: Used to start the gasoline engine.
- Electric Generator: Generates electricity.
- Diesel Filter: Filters the diesel fuel.
- High Pressure Water Pump: Pumps water at high pressure.
- DK Fan Motor Controller (DK): Controls the fan motor.
- Fuel Heater: Heats the water.
- Burner Tip: The end of the burner assembly.
- Stack Nozzle: The exhaust outlet.
- Temperature Module (MK): Monitors temperature.
- Computer Board: Controls the system’s functions.
- PT100 Thermocouple: Measures temperature.
- QF Air Switch: Electrical switch.
- FU Fuse: Electrical fuse.
- DC 12V to DC 24V Power Supply: Converts power.
2. Operational Overview
- Working Process:
- Start the gasoline engine and water gun; the washer initially operates with high-pressure cold water.
- Turn the LWB transfer switch 90° clockwise to “ON” to power the electrical control box and start the fan motor (which will stop after 60 seconds if no further action is taken).
- The diesel fuel level float must be floating for the heating process to operate smoothly.
- Turn the Heating Switch (SB) to “ON”. The ignition transformer creates a spark, which ignites the diesel mist, heating the water to high-pressure hot water.
- The Fan Motor (M) drives the fan for combustion, and the Oil Pump atomizes the diesel.
- Temperature Control:
- Use the up/down arrow keys (green circle) to set the desired temperature.
- Recommended Temperature Range: 60-100°C.
3. Display and Signal Lights
- Signal Input Lights (Left to Right):
- Oil tank level.
- Heating pressure switch.
- Heating switch.
- Signal Output Lights (Left to Right):
- Fault alarm.
- Unused.
- Unused.
- Oil pump coil.
- Fan motor controller start.
- Unused.
- Ignition transformer.
4. Normal Operation States and Indicator Lights
- Standby State (LWB “ON”): Light #8 turns off after 60 seconds. All other lights remain off.
- High Pressure Cold Water State: Lights #4 and #8 are on. Other lights remain off.
- Heating State: Lights #4, #5, #6 (for 15 seconds), #7, and #8 are on. Other lights remain off.
5. Troubleshooting
- Fault Alarm Indicators:
- Light #1 + Fault Alarm (Low Diesel Oil Level):
- Check if the tank is out of oil, or the float is stuck or broken.
- Light #2 + Fault Alarm (Heating Failure):
- Check for normal ignition and the temperature detection system.
- Light #3 + Fault Alarm (Diesel Filter Maintenance):
- Replace the filter and reset the system.
- Light #1 + Fault Alarm (Low Diesel Oil Level):
- Machine Does Not Heat:
- No Pressure: Ensure the nozzle is installed, check the nozzle spray, pressure gauge, and indicator light #4.
- Heating Pressure Switch: Check if the switch is broken by observing indicator light #4 and testing with a multimeter.
- Heating Switch: Check if the switch is broken by observing indicator light #5 and testing with a multimeter.
- Fan Issues: Check if the fan is rotating by observing the fan blades through the air supply port. Check indicator light #8 and the fan motor/controller.
- Oil Pump Issues: Check the oil return pipe, and coupling between the oil pump and the fan.
- Oil Pump Coil: Check indicator light #7. Verify voltage and magnetism with a multimeter.
- Ignition Transformer: Check indicator light #6. Use a multimeter to verify voltage and look for a fire arc. Alternatively, check for diesel residue above the smoke outlet.
- Combustion Head: Check the position of the ignition needle, oil nozzle, and the 2-pole spacing. Clean any dirt on the ignition needle and examine the nozzle for wear.
- Computer Board: Check if the signal input and output lights are normal. If the power light flashes, there could be an issue.
- Temperature Detection Issues: Examine the temperature module (MK) and the PT100 thermocouple. If the display shows a temperature over 300°C, inspect accordingly.
- Machine Smokes:
- Black Smoke: Indicates carbon accumulation or insufficient oxygen. Check the air supply for obstructions.
- White Smoke: Indicates incomplete combustion. Check the nozzle and ignition needle.
- Blue Smoke: Could be caused by ignition transformer damage or excessive diesel in the fuel heater.
- Machine Not Responding When LWB is On:
- Check the DC power supply with a multimeter.
- Check the LWB transfer switch for damage or poor contact.
- Check the fuse.
- Interference Issues:
- Symptoms: Unstable temperature readings, random light jumping.
- Solution: Move the machine away from interference sources.
- Temperature Display Shows 65533:
- This indicates that the ambient temperature is below 0°C, in which case the machine should not be turned on.
6. Important Notes
- Professional Assistance: Some troubleshooting steps require a professional electrician.
- Antifreeze: Always drain the residual water inside the fuel heater before freezing temperatures to prevent damage.
This guide helps you quickly identify and resolve common issues with the All Surface Cleaner. For more complex problems, please seek professional assistance
Question and Answers:
What are the power sources for the Aqua Flex All Surface Cleaner?
It uses a 15 HP engine for powering the pressure pump. Diesel to heat the diesel heater. And, 2 110 volt cords for the vacuum and pump-out.
What is the warranty?
It has a 1-year part and labor warranty on all major components against manufacturer defects from Magic Wand Company. Some components have additional warranties from their manufacturers.
Can I really do all the things the machine is claiming it can do?
Yes. And, better than most other machines, because of the insane unlimited heat it generates.
Can I roll the machine out to get closer to jobs or move it inside in the winter?
Yes. Super easy to roll it in and out on ramps.
Do I have to install it?
You will have to secure it. You can do this easily yourself using D-rings that come with newer vans. If you have an older van, you can install some D-rings in it easily. Then, you simply strap it in.
What if I need help running it?
We have 3 mechanics on staff to help you with the training, use, and repair. If you live close to any of our offices, you can come in and pick it up. We will train you on the use at the same time.

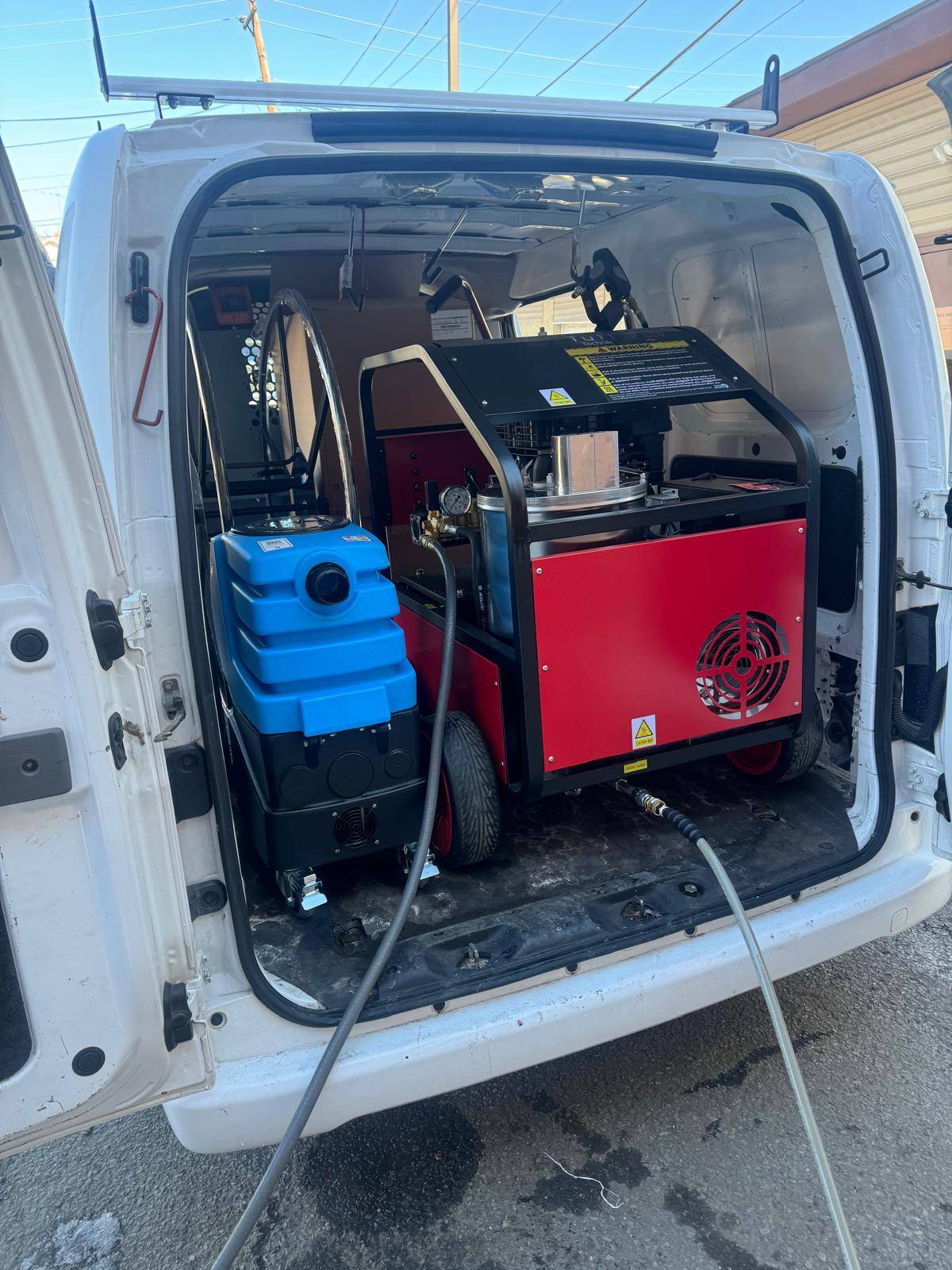

Can I fit it in a smaller van like a Transit?
Yes.
I was thinking of buying a different machine and don’t have enough money to get this. What are my options?
You can finance or lease to own it.
I am starting a new business. Can I still get financing?
Yes. Apply here.
I don’t know about some of these other businesses that I will be able to do with this machine. Is there help for that?
Yes. We have an IICRC Instructor on staff to help with that. Plus, this package includes free training. Even price sheets and invoice.
Do I need to install this in my truck?
No. It can be strapped onto D-rings to further secure it to the truck.
What are the factory-recommended pressure settings for cleaning different surfaces?
For carpet cleaning set the pressure gauge to 275 to 1000 psi. For pressure washing between 1000 & 4000.
What is the warranty?
Warranty covers manufacturer defects for a year from purchase. Wear and tear parts like nozzles and quick disconnects are not included.
What is the difference between 2024 model and the new 2025?
100% stainless outside and 100% stainless coils. Never worry about rust ever.
