The 80-120 Prep Center S™ Is Your New Pit Crew.

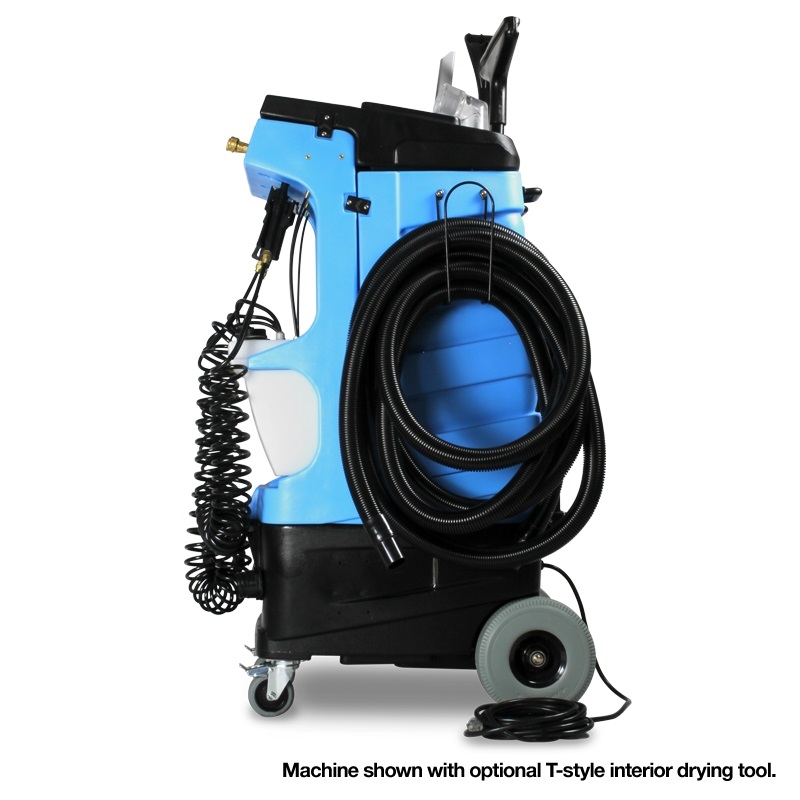

The new Prep Center S™ All-in-One Detail Machine from Mytee is the next chapter in our game changing Prep Center series. The new chassis makes the Prep Center S™ slimmer and more mobile than earlier models, without any loss in function. In fact, we gave it Even More Capacity! With its all-in-one design and intuitive features meant to maximize efficiency, the Prep Center S™ will have you doing laps around your competition, not your shop!

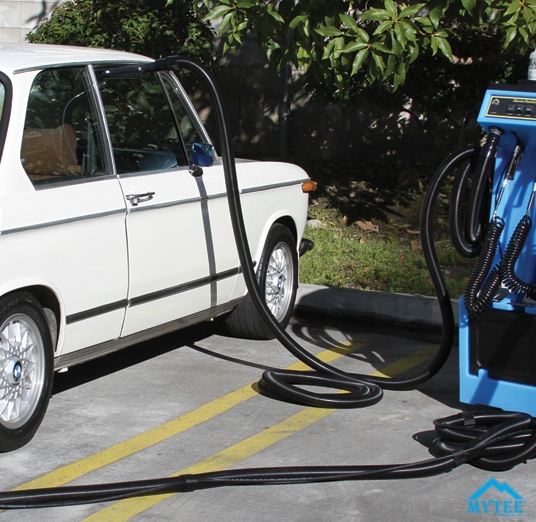

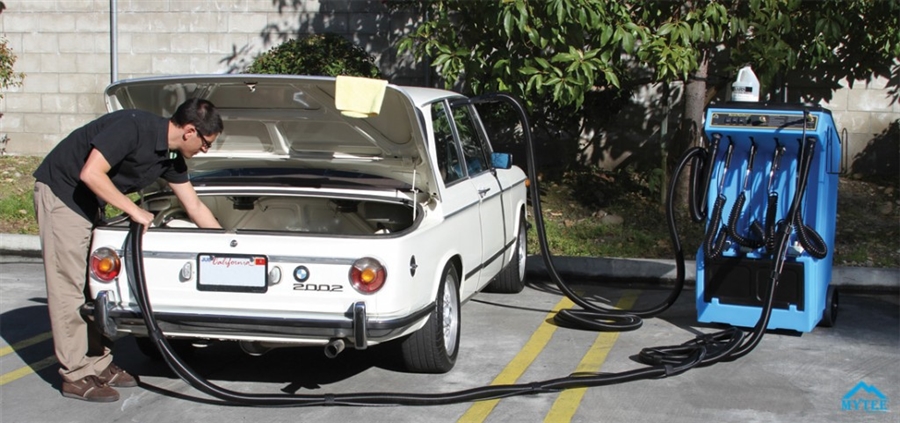

Use this all-in-one detail machine to perform hot water extraction, dry vacuuming, interior and exterior drying, chemical application, and even paint correction when you connect an air brush to the front quick connect!
Prep Center S All-in-One Detail Machine Includes:
- 8400P Air Lite™ Upholstery Tool
- 25′ vacuum & solution hose combo
- 25′ dry vacuum hose
- Dry vacuum claw
- Dry vacuum crevice tool
- Blower tool
Features:
- 12 gallon (approx.) solution and recovery tanks.
- 3-stage low amp vacuum motor, 100 CFM, 130” water lift.
- 120 PSI viton sealed solution pump.

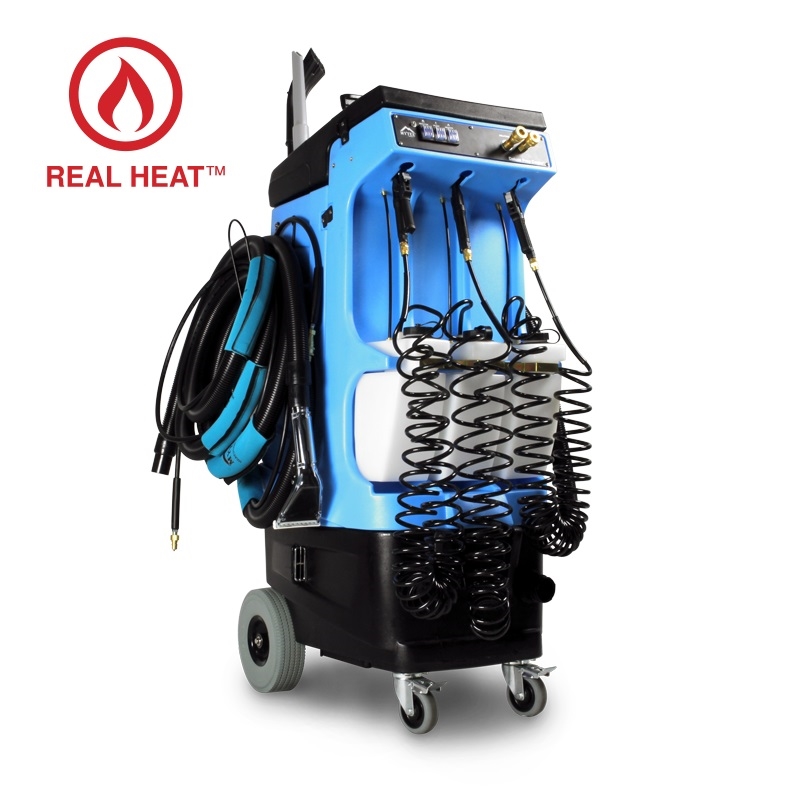

- Exclusive REAL HEAT™ system produces hot water using a 1,200-watt in-line heating system with a maximum temperature of 210˚ F.
- Convenient faucet fill hose.
- Wet and dry vacuum capability.

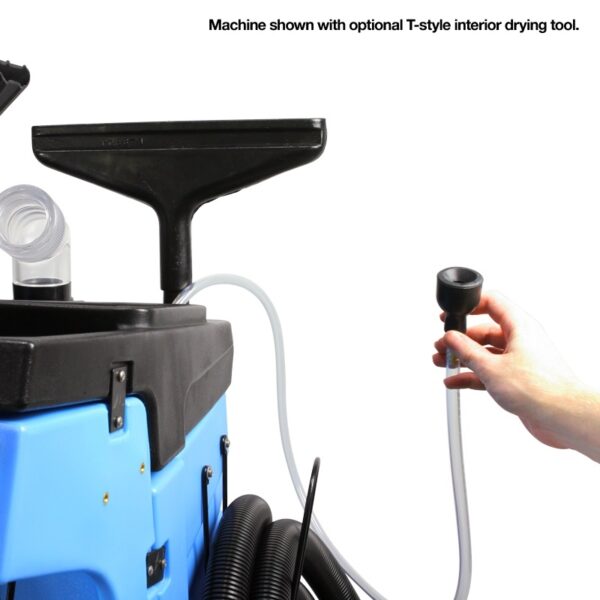

- Interior and exterior drying capability, complete with attachments.

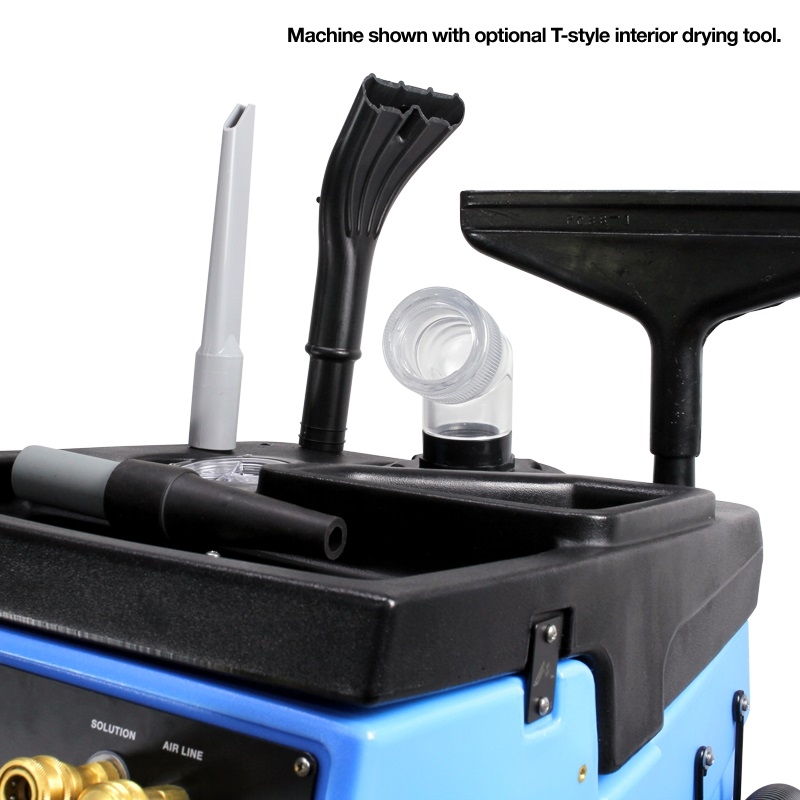

- Contains built in tray to keep tools in order and easily store them after each job.

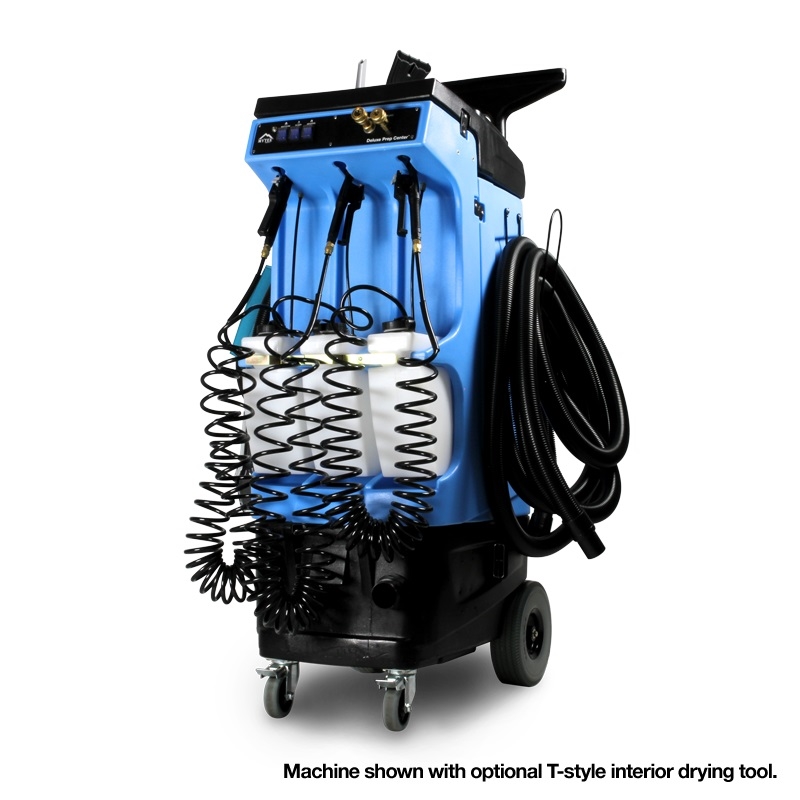

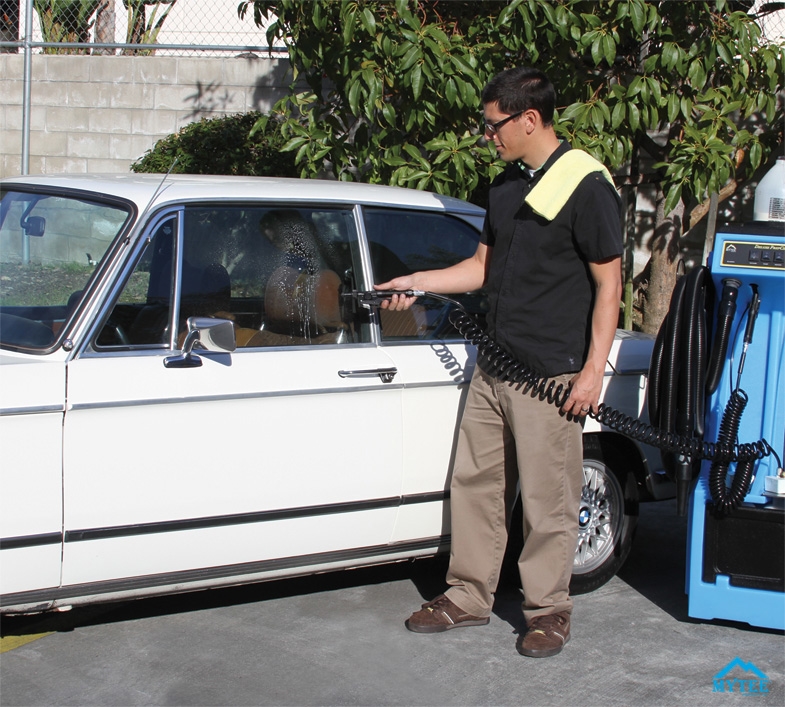

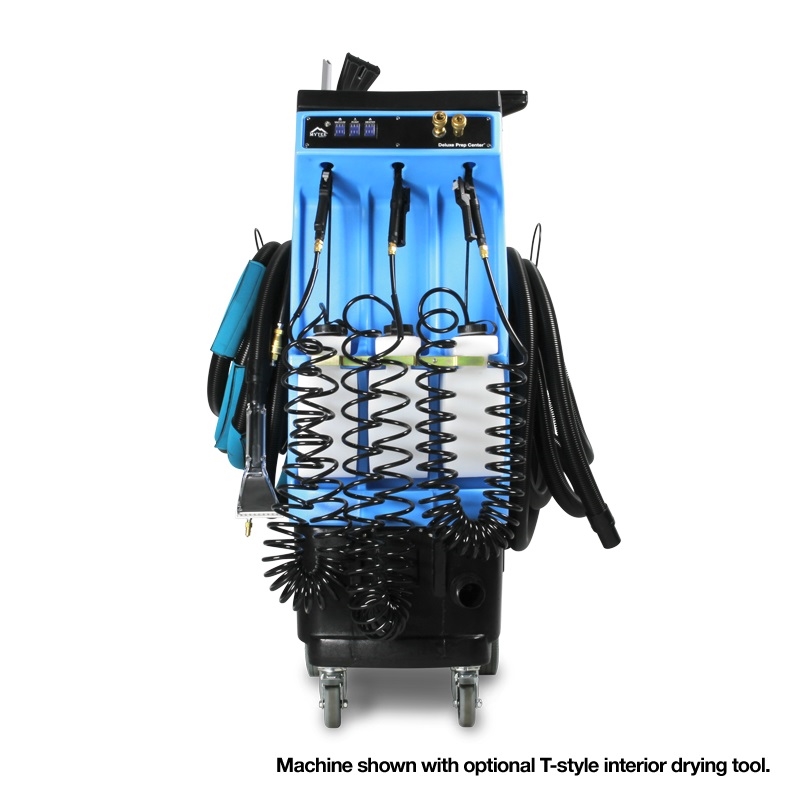

- Multiple chemical dispensing with three bottles powered by a shop air compressor and a 25′ coiled hose with adjustable gun for each bottle.
- Durable roto-molded polyethylene body which resists rust and denting.

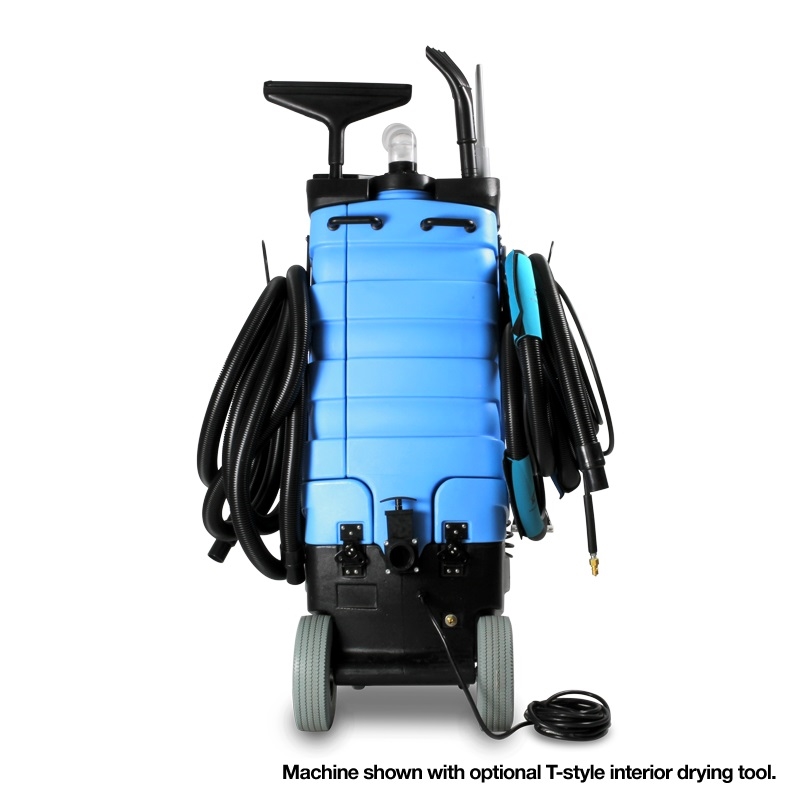

| Body | • Roto-molded polyethylene housing • 10″ (25.4 cm) foam-filled rear wheels • 4″ (10 cm) locking front casters |
|---|---|
| Solution Tank | 12 gallon (45.4 L) approx. capacity |
| Vacuum Tank | 12 gallon (45.4 L) approx. capacity |
| Vacuum | Single 3-Stage Vacuum Motor • 100 CFM • 130″ water lift |
| Pump | Diaphragm Demand Pump • 120 PSI • 1.3 GPM |
| Heater | REAL HEAT™ system – 1,200W – 210ºF maximum |
| Chemical Dispenser | Three bottles with hoses & adjustable nozzles – Powered by shop air source |
| Package Includes | • 4″ upholstery tool (choose between Air Lite™ and stainless steel) • 25′ Vacuum and Solution Hose Combo • 25′ Dry Vacuum Hose • Dry Vacuum Claw • Dry Vacuum Crevice • Blower Attachment Tool |
| Power Cord | Single 25′ (7.6 m) 12/3 |
| Amp Draw (110-120V 60Hz) | Cord One: 20 amps |
| Amp Draw (220-240V 50Hz) | Cord One: 10 amps |
| Net Weight | 144 lbs. (65.3 kg) |
| Machine Dimensions | 31″ x 19″ x 55″ (78.7 cm x 48.2 cm x 139.7 cm) |
| Shipping Weight | 169 lbs. (76.7 kg) (does not include pallet weight) |
| Shipping Dimensions | 34″ x 21.5″ x 58″ (86.4 cm x 54.6 cm x 147.3 cm) |
